Taco 0014 Circulation Pumps require flange kit (not included). Includes O-rings. Power Supply Cord (p/n 556) sold separately.

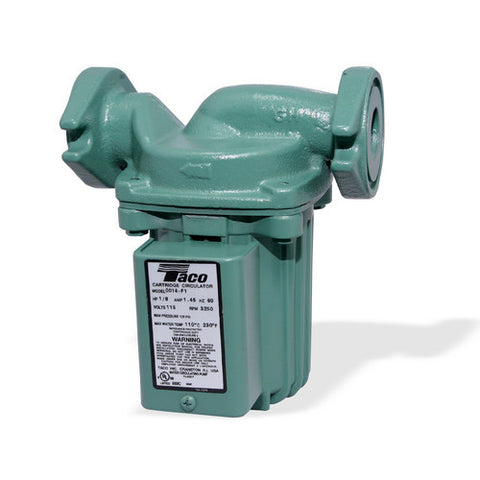

Taco 0014-F1 Circulator
Is designed for high head / medium flow applications in large residential and light commercial systems. Common uses include high mass boilers, commercial water heaters, and light commercial heating and cooling systems. Features the unique replaceable cartridge which contains all of the moving parts and allows for easy service instead of replacing the whole unit.
Taco 0014-F1 replaces:
Grundfos UP26-64F, UP43-64, UPS26-99FC @ spd 3, Armstrong Astro50 and Wilo Star 21.
- Hydronic Heating/Cooling
- Radiant Heating
- Zoning with Pumps
- Hydro-Air Fan Coils
- And many others
- Flow Range: 0 to 32 GPM
- Head Range: 0 to 22 Feet
- Minimum Fluid Temperature: 40F (4C)
- Maximum Fluid Temperature: 230F (110C)
- Maximum Working Pressure: 125 psi
- Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged
- Voltage: 115V;
- Hertz: 60Hz;
- Phase: 1;
- Amps: 1.55A;
- HP: 1/8HP;
