Description:

Taco 009 Circulation Pump. Includes O-rings. Power Supply Cord (p/n 556) sold separately. This is the most common pump used for outdoor wood furnace/boiler installations.

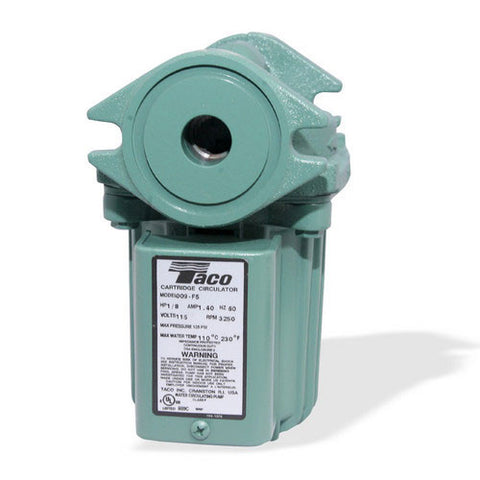

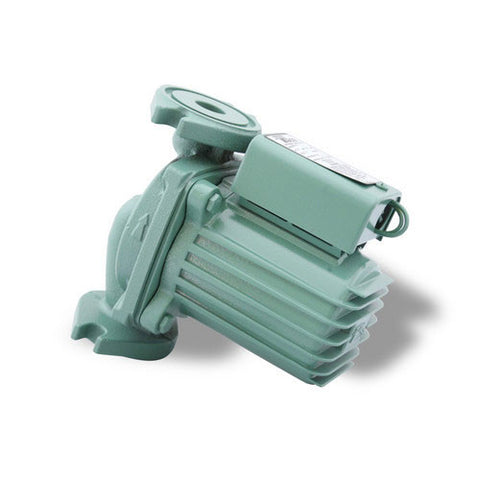

The High Velocity series Taco 009-F5 Circulator Pump is designed for use in high head and low flow applications in hydronic heating and radiant heating. Features a field-serviceable cartridge which allows to replace the cartrigde without replacing the entire circulator. The Taco 009-F5 maintenance free design provides unmatched reliability.

Taco 009-F5 replaces:
Grundfos UP15-100, Armstrong Astro70 and Wilo Star 32.

Applications:

• Hydronic Heating/Cooling
• Radiant Heating
• Applications with High Pressure Drop (High Head)
• Wood Boilers / Furnaces
• Hydro-Air Fan Coils
• And others

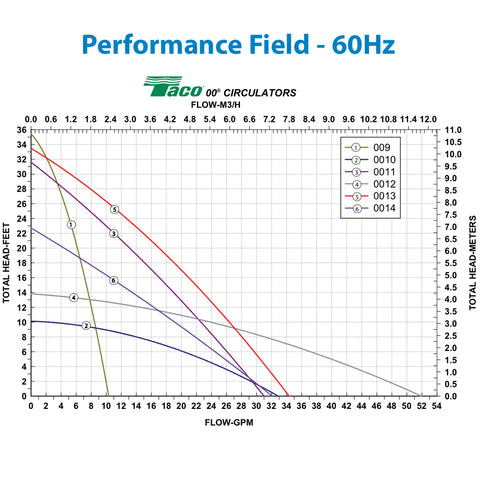

Performance Data:

• Flow Range: 0-10 GPM
• Head Range: 0-35 Feet
• Minimum Fluid Temperature: 40F (4C)
• Maximum Fluid Temperature: 230F (110C)
• Maximum Working Pressure: 125 psi
• Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged

Electrical Data:

• Voltage: 115V
• Hertz: 60Hz
• Phase: 1
• Amps: 1.40A
• HP: 1/8HP
