Taco Viridian VR1816 00e ECM High-Efficiency Circulator Pump

Type: Pumps
Vendor: Central Boiler
SKU:
Mfg Part:
Availability: In Stock

Description:

The 00e series VR1816 circulator is an infinitely variable speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. Operating modes include infinitely variable fixed speed and self-adjusting constant pressure or proportional pressure variable speed.

Applications

The VR1816 circulator is a variable speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. Operating modes include infinitely variable fixed speed to fine tune any zone, self-adjusting constant pressure for zone valve applications and self-adjusting proportional pressure for panel radiators with thermostatic radiator valves. The VR1816 is not suitable for chilled water or open loop potable water applications.

  • 18' Shut-off head, 16 gpm max flow
  • ECM High-efficiency motor
  • Easy to use dial to set operating speed or pressure control

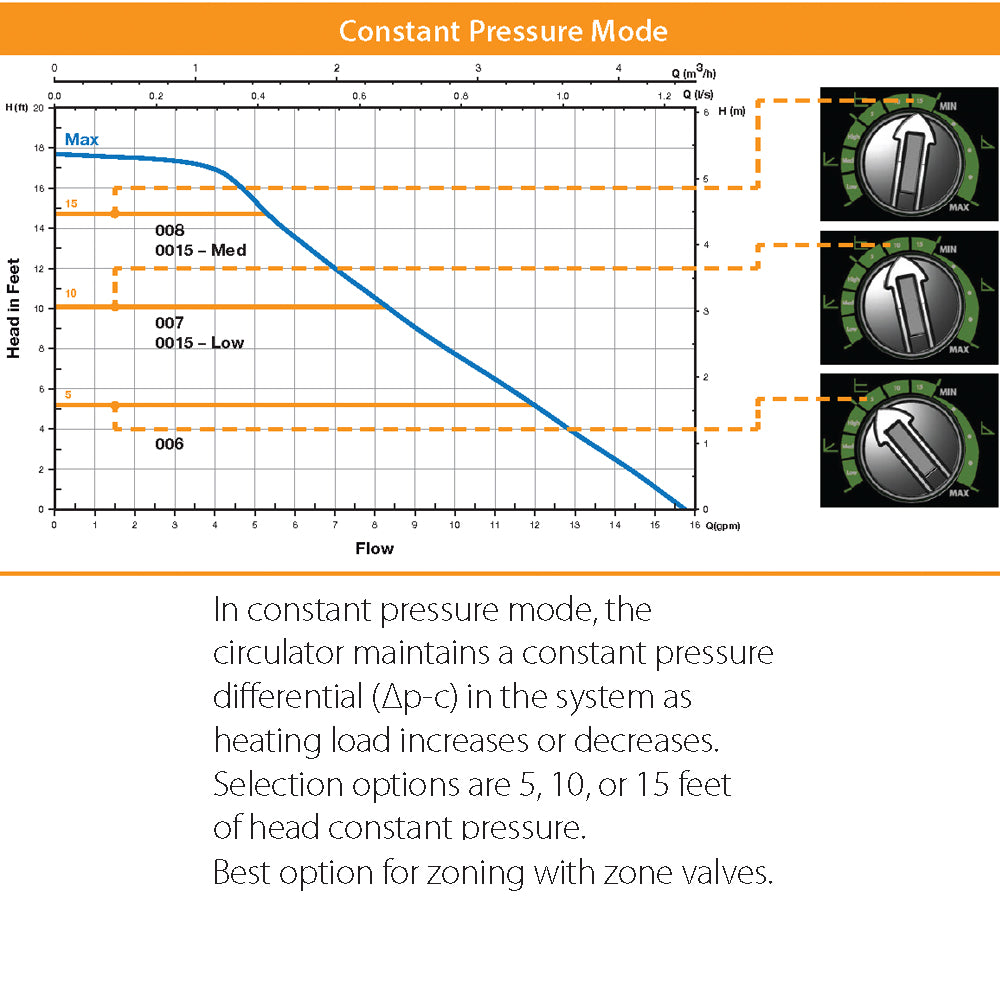

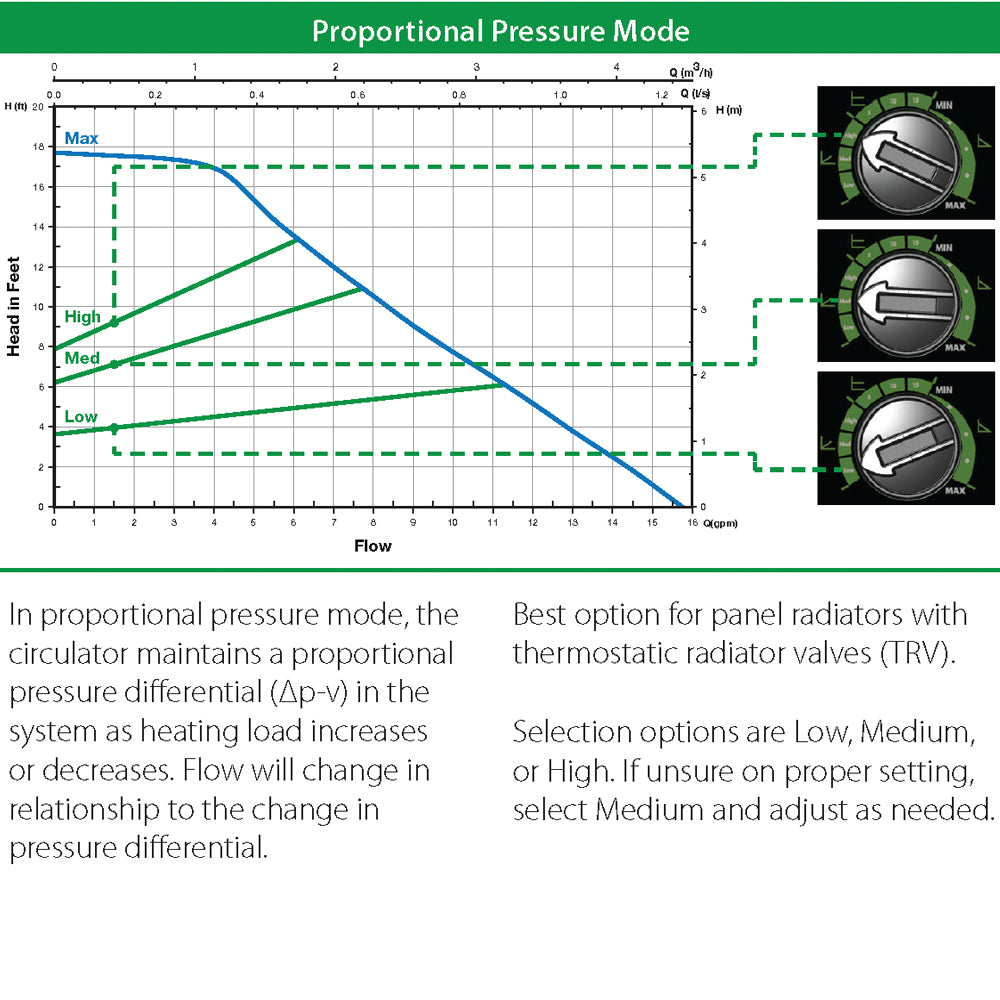

  • Operates in 3 different modes: - Infinitely Variable Fixed Speed - Constant Pressure Self-adjusting, Variable Speed - Proportional Pressure Self-adjusting, Variable Speed
  • 5 color LED displays: - Operating mode (Blue, Orange or Green) - Error code diagnostics (Red or White)
  • Use with a Taco ZVC Zone Valve Control or SR Switching Relay for ON/OFF operation
  • Integral Flow Check (IFCå¨) included
  • Whisper quiet operation
  • Double insulated, no ground required

Specifications

  • Maximum Shut-off Head: 18 feet
  • Maximum Flow: 16 gpm
  • Maximum Operating Pressure: 125 psi (8.6 bar)
  • Maximum Water Temp: 230F (110C)
  • Minimum Water Temp: 36F (2C)
  • Electrical specifications: Voltage: 120V, 60 Hz Single phase Operating Power: 4W - 44W Max. AMP Rating: 0.54
  • Equipped with a cast iron casing and should be used for closed loop systems only
  • Taco circulator pumps are for indoor use only
  • Acceptable for use with water or maximum of 50% water/glycol solution
  • Flange not included
