Description:

On backorder. Orders placed now will ship when back in stock.

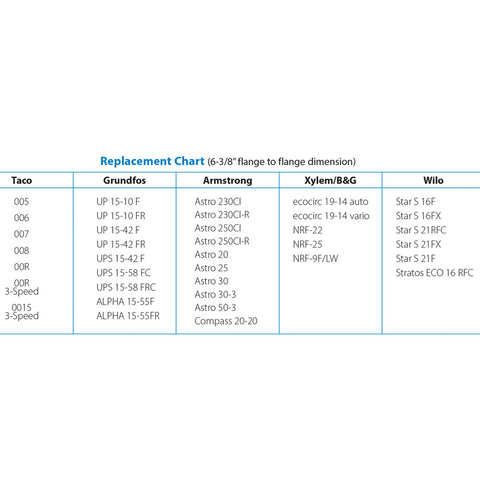

Replaces TACO 007e

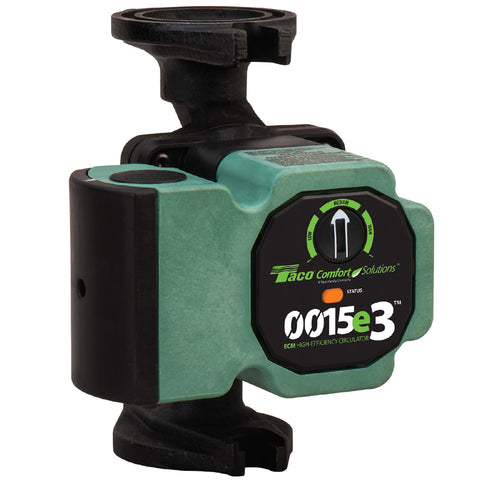

Taco 0015e3™ is a variable speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. It’s ideal for hydronic systems zoned with circulators or zone valves. With 3 easy settings, the 0015e3 delivers performance, reliability and ease of installation that made the 00® famous.

• BIO Barrier® protects pump from system contaminants
• Integral Flow Check (IFC) included
• SureStart ™ automatic unblocking and air purging mode
• High-efficiency ECM motor uses up to 85% less electricity
• Integral Flow Check (IFC®) included
• Dual electrical knockouts, 6” stranded wire leads included for easy wiring.
• Use with a Taco ZVC Zone Valve Control or SR Switching Relay for ON/OFF operation.

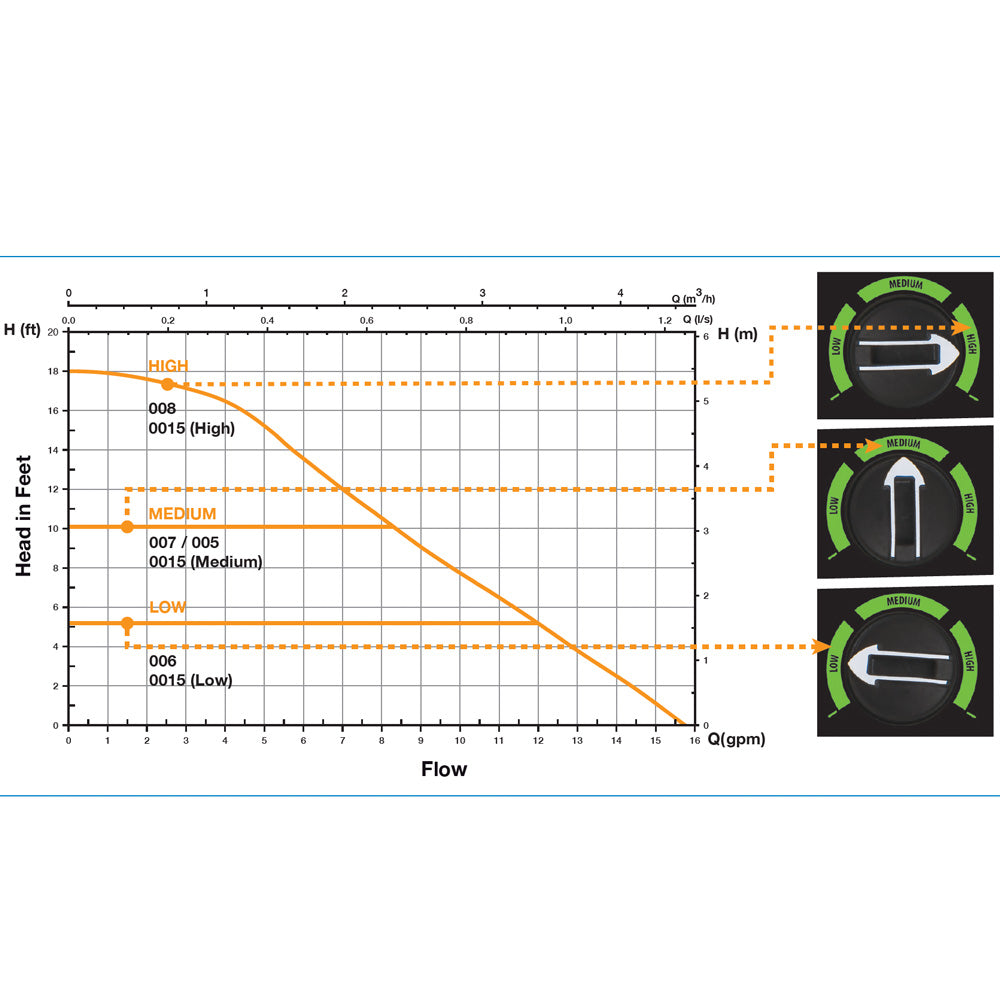

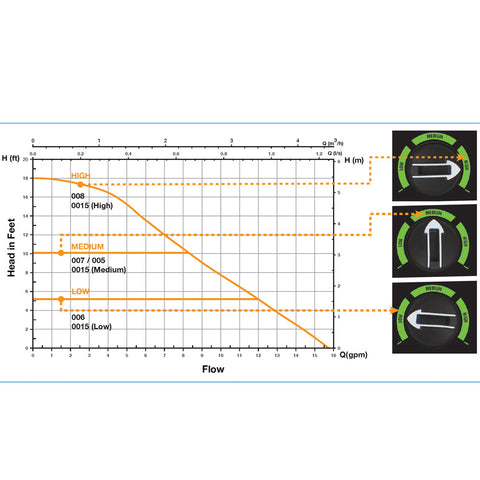

• 3 easy settings: LOW (5 feet head), MEDIUM (10 feet head), HIGH (18 feet head), 16 gpm max flow.

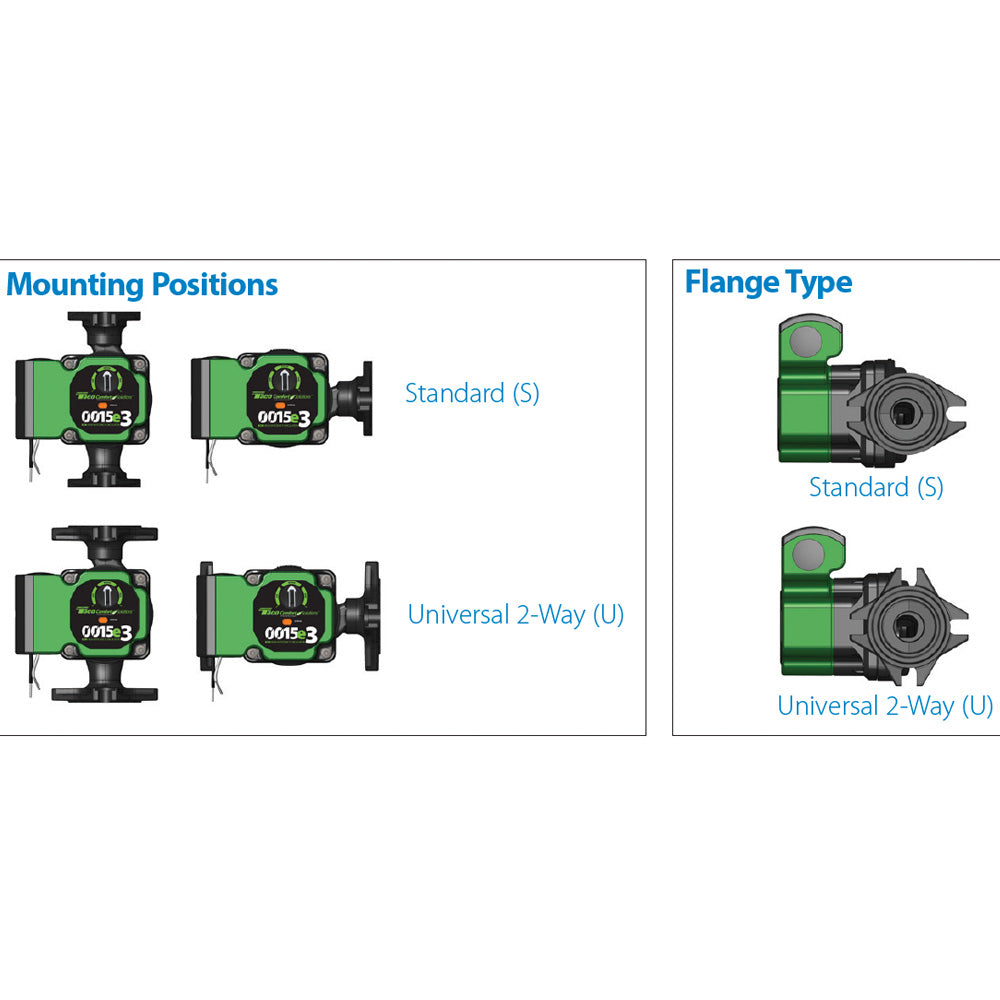

• Optional 2-way flange model reduces SKUs and provides universal fit-up to any flange position.
• Double insulated. No ground wire required.
• Whisper quiet operation.

Applications

The 0015e3 is a variable speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. Its ECM performance is equivalent to the Taco 0015 3-Speed circulator and is ideal for hydronic systems zoned with circulators or zone valves. 0015e3 is not suitable for potable water or chilled water systems.

Specifications

• Max. Shut-off Head: 18 feet
• Max. Flow: 16 gpm
• Max. Operating Pressure: 125 psi (8.6 bar)
• Max. Water Temp: 230F (110C)
• Min. Water Temp: 36F (2C)
• Electrical specifications: Voltage: 120V, 60 Hz Single phase Max. Operating Power: 44W Max. AMP Rating: 0.54
• Equipped with a cast iron casing and should be used for closed loop systems only
• Not suitable for chilled water or open loop potable water systems
• Taco circulator pumps are for indoor use only
• Acceptable for use with water or maximum of 50% water/glycol solution
